Product Key Selling Points & Features
1. Unmatched Speed & Rapid Coverage
- Fastest smoke generation in its class: 1-second trigger activation.
- Achieves full area coverage in just 8 seconds, ensuring immediate threat response.
- Protects critical zones within 3 seconds of activation.
2. Innovative Cold Smoke Technology
- Patented dry smoke formula generates cold smoke instantly (no pre-heating required).
- Eliminates heat damage risks and allows for immediate deployment.
- High-density smoke provides superior opacity for maximum visual obstruction.
3. Extended Performance & High Efficiency
- Long-duration fog output lasts 30-45 minutes per activation.
- Low power consumption: 48W max working power, with low-voltage startup and standby.
- Covers 100m³ (with filter) to 150m³ (without filter) in enclosed/semi-enclosed spaces (2.5-3m height).
4. Safe, Certified & Environmentally Considerate
- Biodegradable, non-toxic, and non-corrosive smoke formula.
- Safe for humans, furnishings, and electrical equipment.
- Holds relevant safety certifications for commercial/industrial use.
5. User-Friendly & Low Maintenance
- Easy to refill and maintain: smoke container is quickly replaceable; generator is reusable.
- No heating time required—ready for instant use at any time.

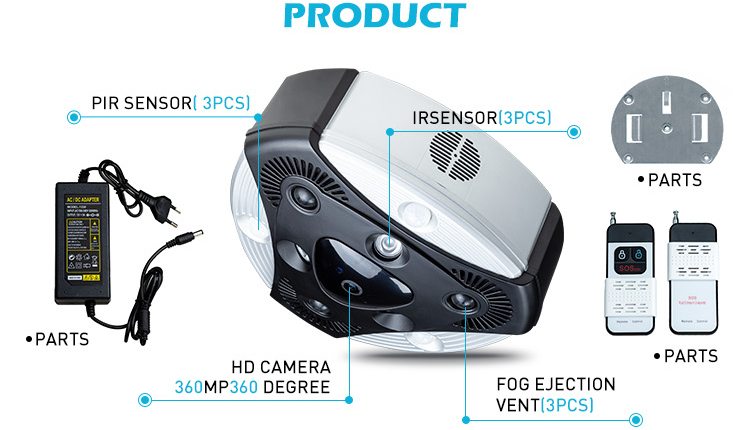

6. Advanced Integrated Security Device Features All-in-one security unit with HD camera, PIR motion sensors, and built-in siren.

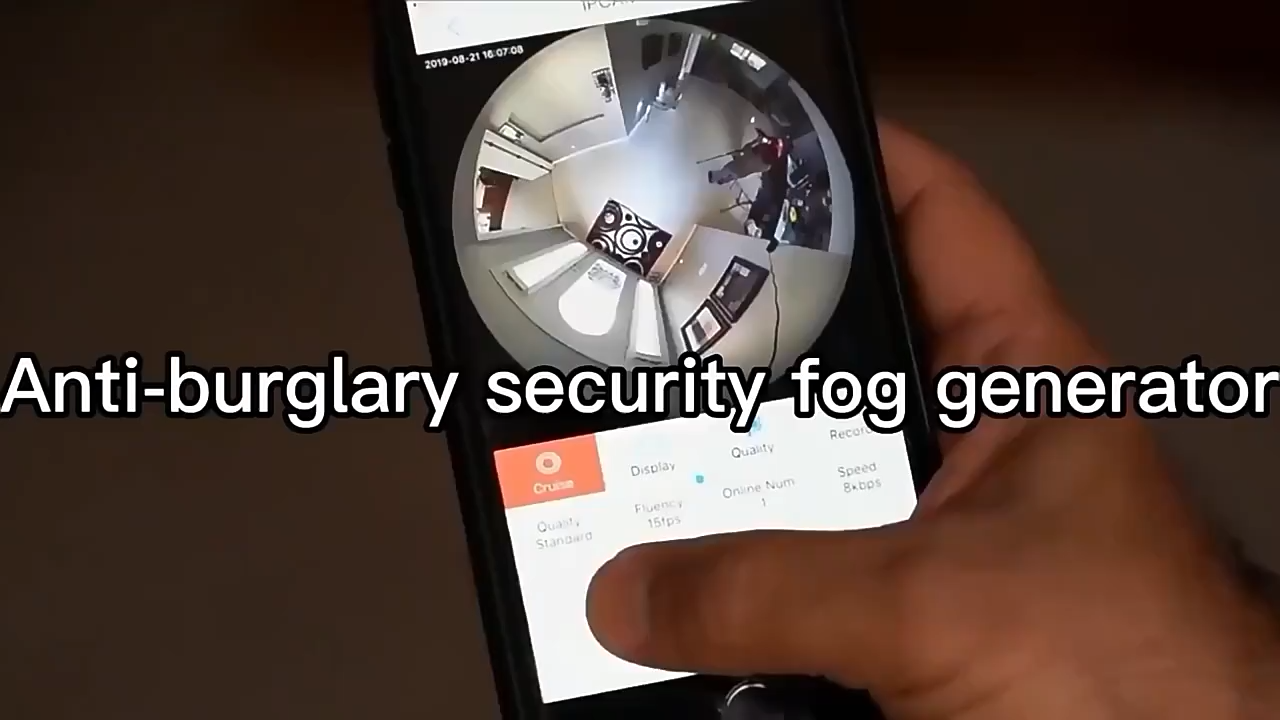

- Remote & flexible triggering: via IOS/Android App, remote control, or online command.
- Two-way audio and WIFI/LAN connectivity for real-time monitoring and communication.
- Combines visual verification, instant alerts, and physical smoke defense in one system.
Technical Parameter
| Model number |
HAM-FH |
| Camera |
| Image sensor |
1/2.8” progressive scan CMOS sensor |
| Min. illumination |
0.02Lux@(F2.0,AGC ON )0Lux with IR |
| Shutter time |
1/3 s to 1/100,000 s |
| Lens |
4mm@ F2.2 |
| Lens mount |
M12 Support 2.4mm, 4mm, 6mm,8mm Lens |
| Day&night |
ICR infrared filter type with auto switch |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Video Compression |
| Motion detection |
On /Off sensitivity adjustment |
| Video compression |
H.264 |
| H.264 code profile |
Main profile |
| Encoding rate |
Ultra clear, 1080p, balanced process |
| Image |
| Image resolution |
1920x1080@30fps,720x480@30fps,360x240@30fps |
| Capturing |
JPG 2048*1536 |
| |
Support mainstream and sub stream separately |
| Frame rate |
50 Hz:25 fps (1280 × 960), 25 fps (1280 x 720) |
| Image settings |
Saturation,Brightness, Contrast adjustable by client software or web browser |
| Backlight compensation |
Support |
| Network |
| Smart alarm |
Motion detection |
| Key configuration |
Find IP via P2P connection |
| General Function |
Anti-Flicker, heartbeat,mirror, password protection |
| Interface |
| Storage interface |
Micro SD card MAX 128G |
| Power interface |
Micro USB interface |
| Network interface |
1 RJ45, 10/100M |
| Wi-Fi |
| Wireless standards |
IEEE802.11b, 802.11g; 2.1GHHZ~2.4835GHZ |
| Channel band width |
Support 20MHZ |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b 11Mbps 11g 54Mbps |
| Alarm |
| RF alarm frequency |
868.4MHZEU, 908.4MHZ US, 921.4MHZANZ, 869.2 MHZ RU |
| RF Distance |
Indoor50m, outdoor100m |
| Support alarm senso |
Magnetic contacts and PIR sensors |
| PIR |
Built-in 3PCS PIR sensor layout |
| General |
| Operating Conditions |
-10° C ~ +45° C/Less than90% RH |
| Power Supply |
12V5A |
| IR Range |
10 m to 15 m |
| Dimensions (mm) |
230*230*120mm |
