HAM-FL-B Series Battery Powered Security Fog Generator

Core Value Proposition: The ultimate wire-free security solution. The HAM-FL-B delivers professional-grade fog security anywhere, eliminating costly electrical wiring and enabling installation in minutes for maximum deployment flexibility and reduced total cost of ownership.

Key Selling Points:

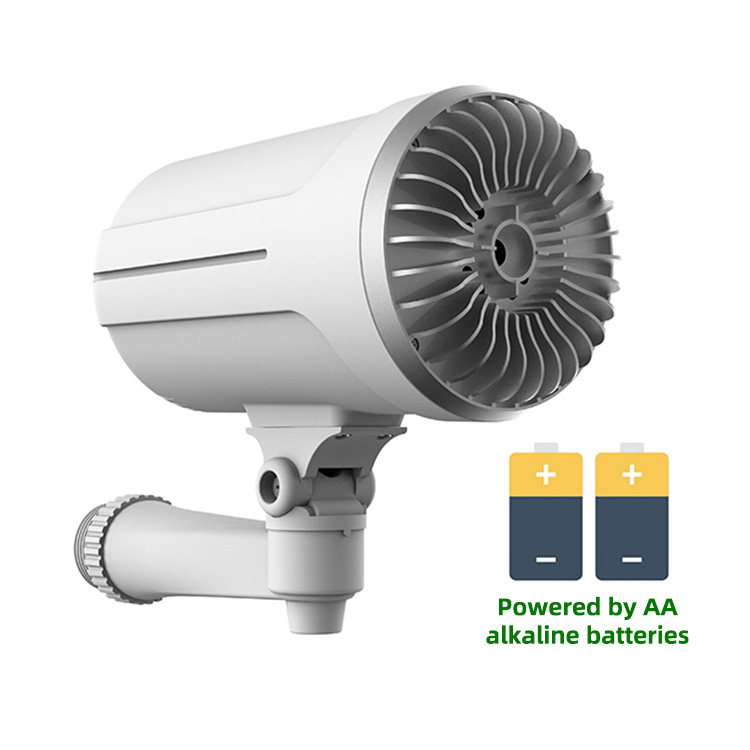

• True Wire-Free Operation: Powered by 2 standard AA alkaline batteries with an exceptional >1 year standby life. Enables installation in locations without power access (storage units, remote cabinets, temporary sites).

• Instant Deployment & Deterrence: Patented 1-second cold-smoke trigger (no heat-up) provides immediate visual obscuration for 30-45 minutes, covering areas up to 150m³.

• Unmatched Reliability & Safety: Certified non-toxic, biodegradable fog (CE, RoHS, ISO, non-toxic reports) safe for people and equipment. Robust design operates in extreme conditions (-10°C to 50°C).

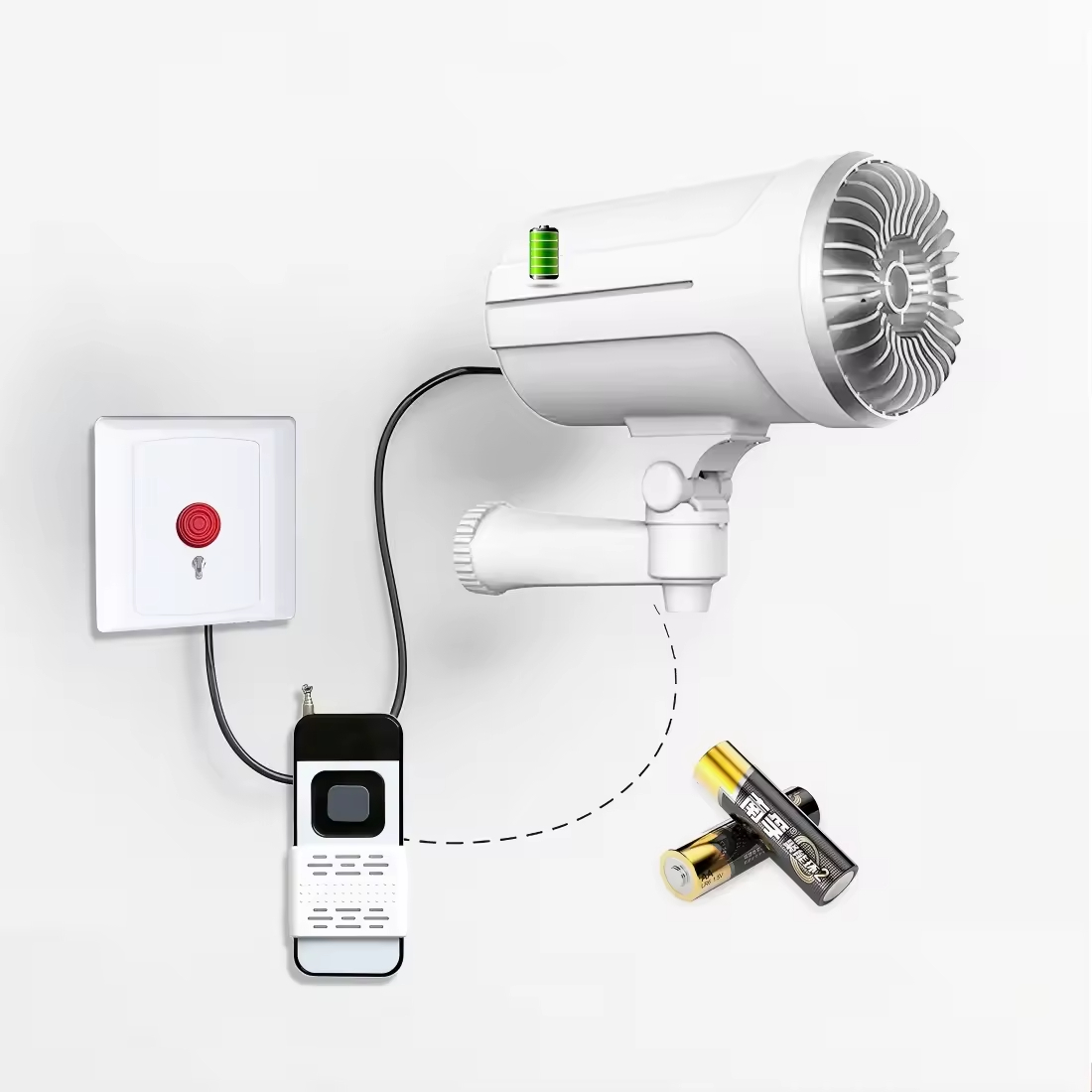

• Simple & Cost-Effective Activation: Trigger via included RF remote or wired panic button. No complex setup or ongoing subscriptions.

• Proven Technology: Backed by design and utility model patents, ensuring performance and quality.

Target Use Case: Ideal for securing wire-free cabinets, remote storage containers, temporary retail pop-ups, construction site lockups, and as a backup to wired systems. It is the go-to choice for adding immediate physical deterrent protection where running power is impractical or prohibitively expensive.

Technical Parameter

Model Number	HAM-FL-B
Fog System
Fog formula	Solid Dry Material, Non-toxic smoke
Fog performance	Cold smoke, 1 second triggered, protect critical area in 3 seconds, cover the protected area in 8 seconds.
Ejection time	15-20 seconds
Fog duration time	30-45 minutes
Heating time	NO need
Protect area	In closed or half closed Area (height2.5-3m), With filter is 100m³, Without filter is 150m³
Control

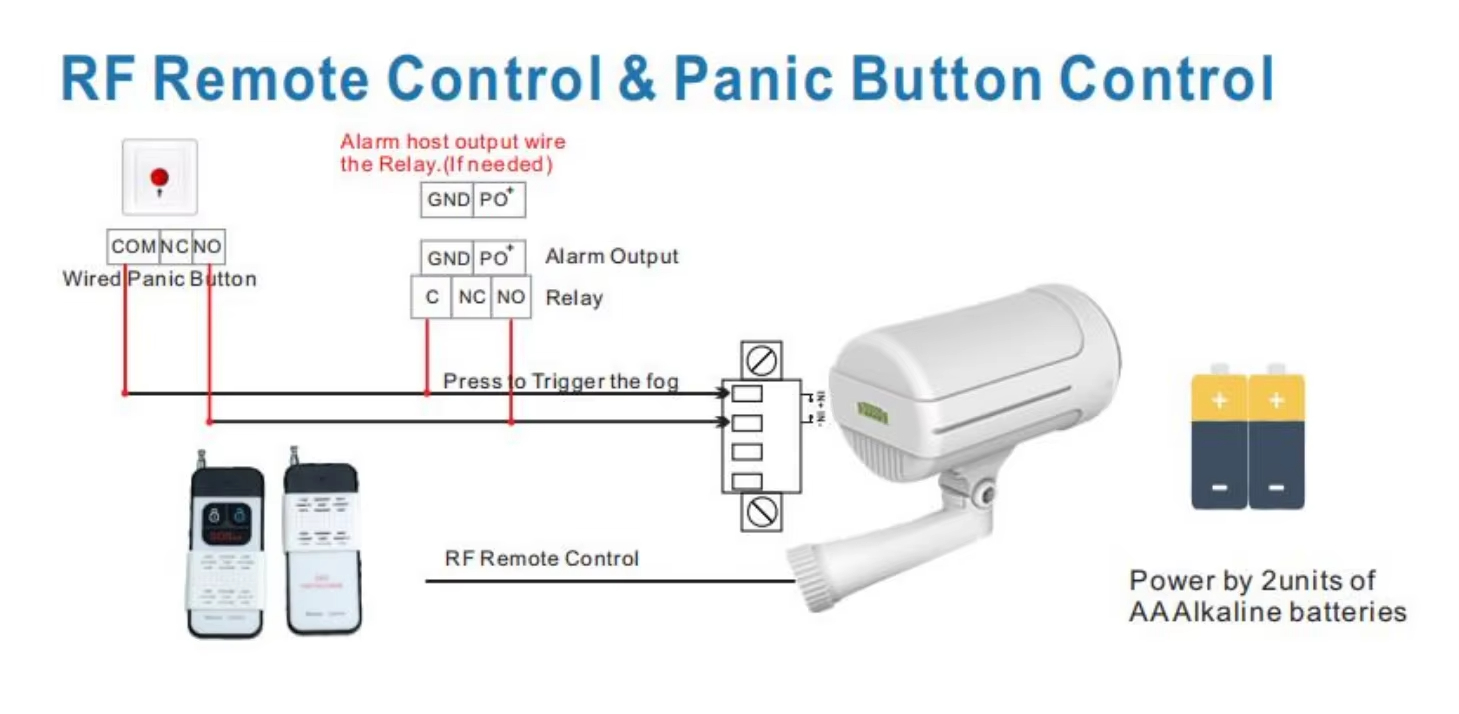

Trigger method	Remote control, panic button, On-off switch
Connection & active	Connect the IN+&IN-, press the remote control or panic button at least 2 seconds (suggest 5 seconds) to trigger fog. It switches to power saving mode after triggering.
Specification

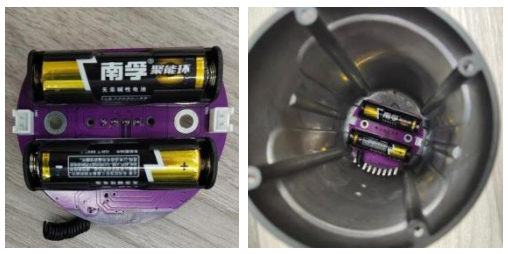

Power	2units of AA Alkline batteries(LR6 1.5V, >3000mAH), lasting at least 2 years
Working environment	-10℃~ 50℃/ humidity 0%-80%

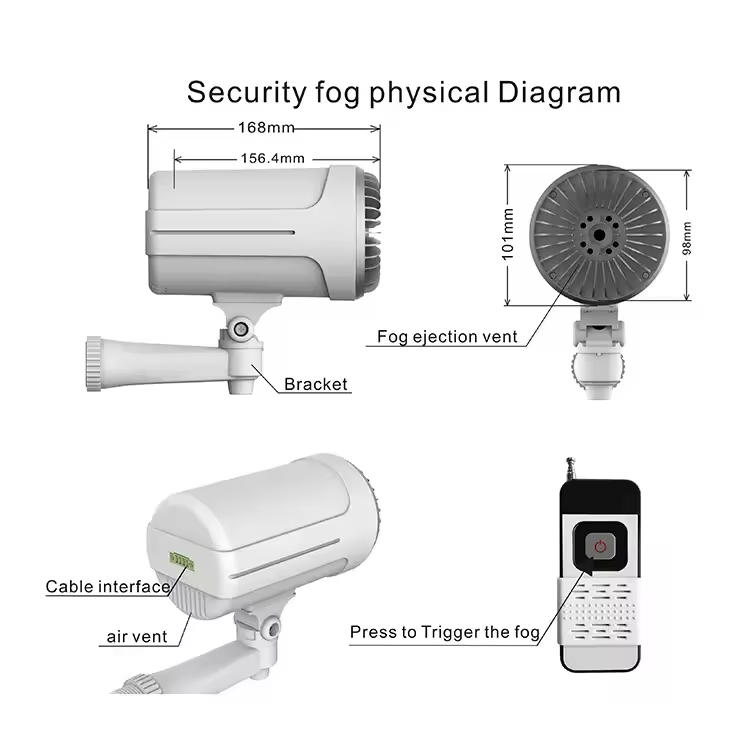

Installation	Wall mount / ceiling mount
Certification	CE, NON-TOXIC test report
Patent	Design patent, utility model patent
Single package size	34X26X16 cm
Single gross weight	2.00 kg





In the box:

1.Security Fog Generator*1
2.Power Adapter*1
3.Bracket*1 and tool &screws*1set
4.Phoenix Plug*1
5.User Manual*1

6.Relay Module *1
