| Model number |
AE-LED20-LY |
| Screen size |
20 inch |
| Display resolution |
1920*1080(3840*2160/30HZ compatible) |
| Display ratio |
16:10 |
| Screen Type |
LCD |
| Backlight |
N/A |
| Brightness |
250cd/㎡(center point, typical value) |
| Contrast ratio |
1000:1 |
| Viewing angle |
160°(H)/170°(V) |
| Response time |
5ms (Gray To Gray) |
| Color depth |
16.7M |
| Control mode |
Panel |
| Power supply |
12V 3A |

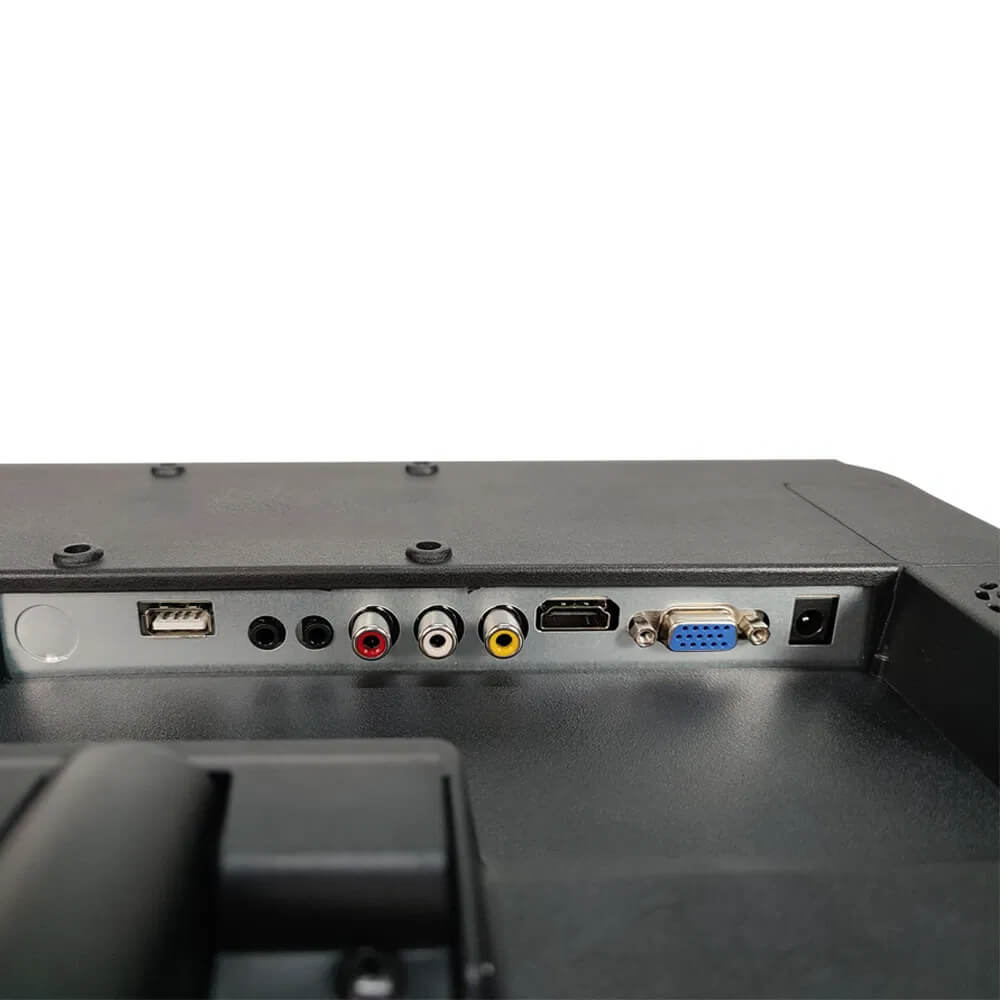

| Input interface |
HDMI/ VGA/ USB/ CVBS/ Audio input |
| Output port |
Audio output |
| Power consumption |
20W |
| Color |
Black body |
| Material |
Flame retardant plastic |
| Overall dimension |
472*285*46mm excluding foot height (foot height 75mm) |
| Package size |
515*406*105mm( single unit) |
| Net W/Gross W |
2.5kg / 3.6kg |
| Package size |
560*558*425mm(5 units per package) |
| Package weight |
17.5kg |
| Working temperature |
-10-60degrees |
| Working environment |
humidity 10%-90%RH |
| Installation |
Desktop, wall hanging (100mm*100mm) |
