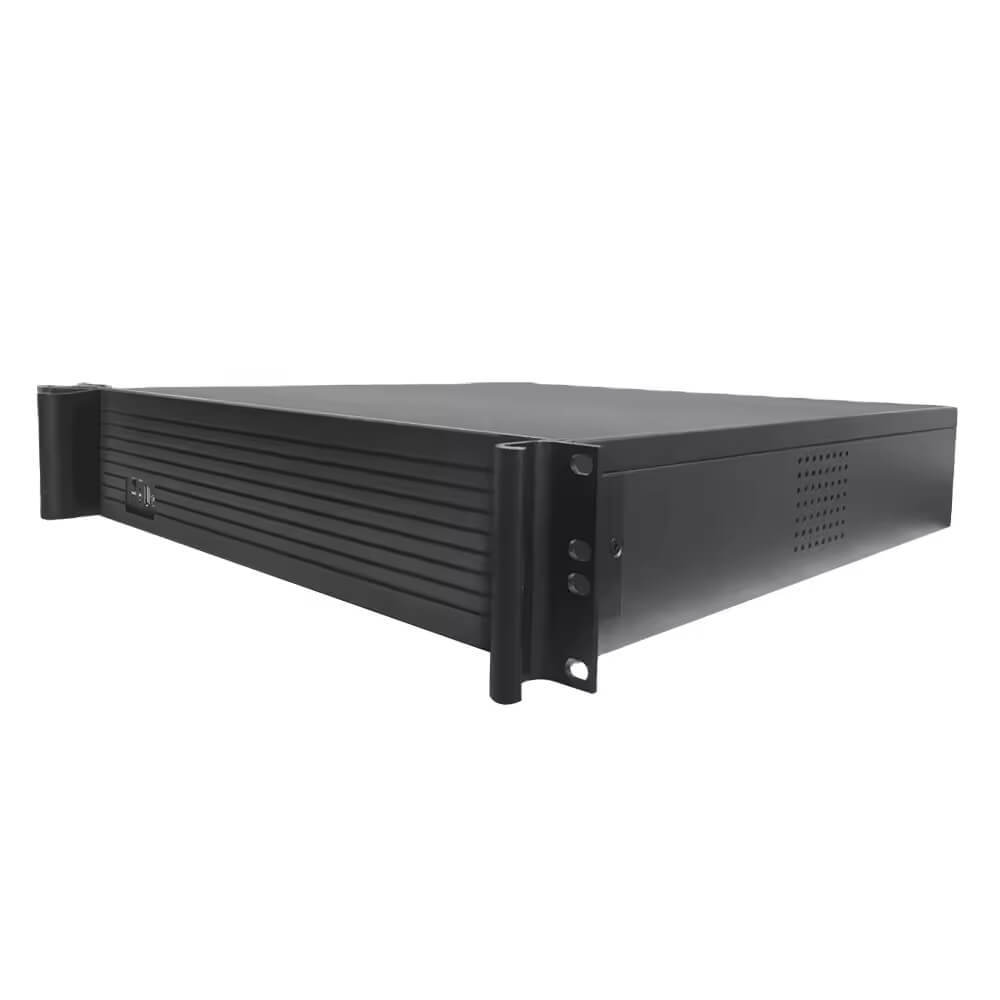

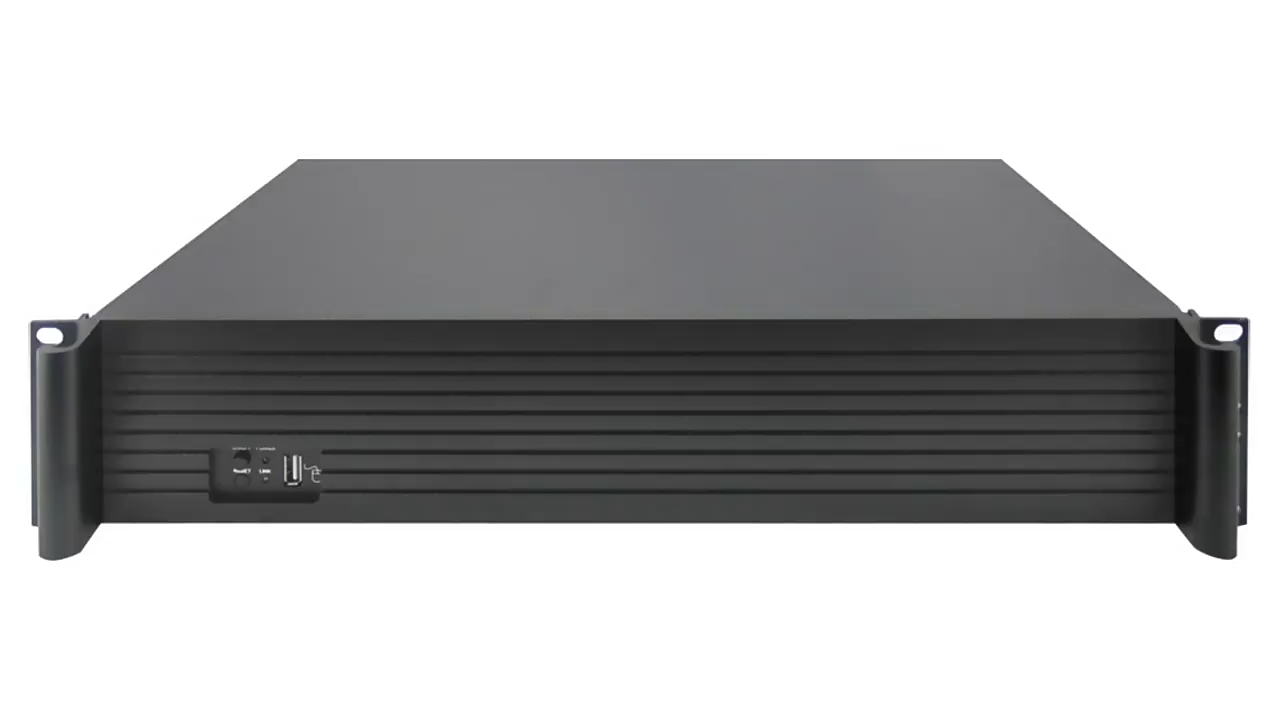

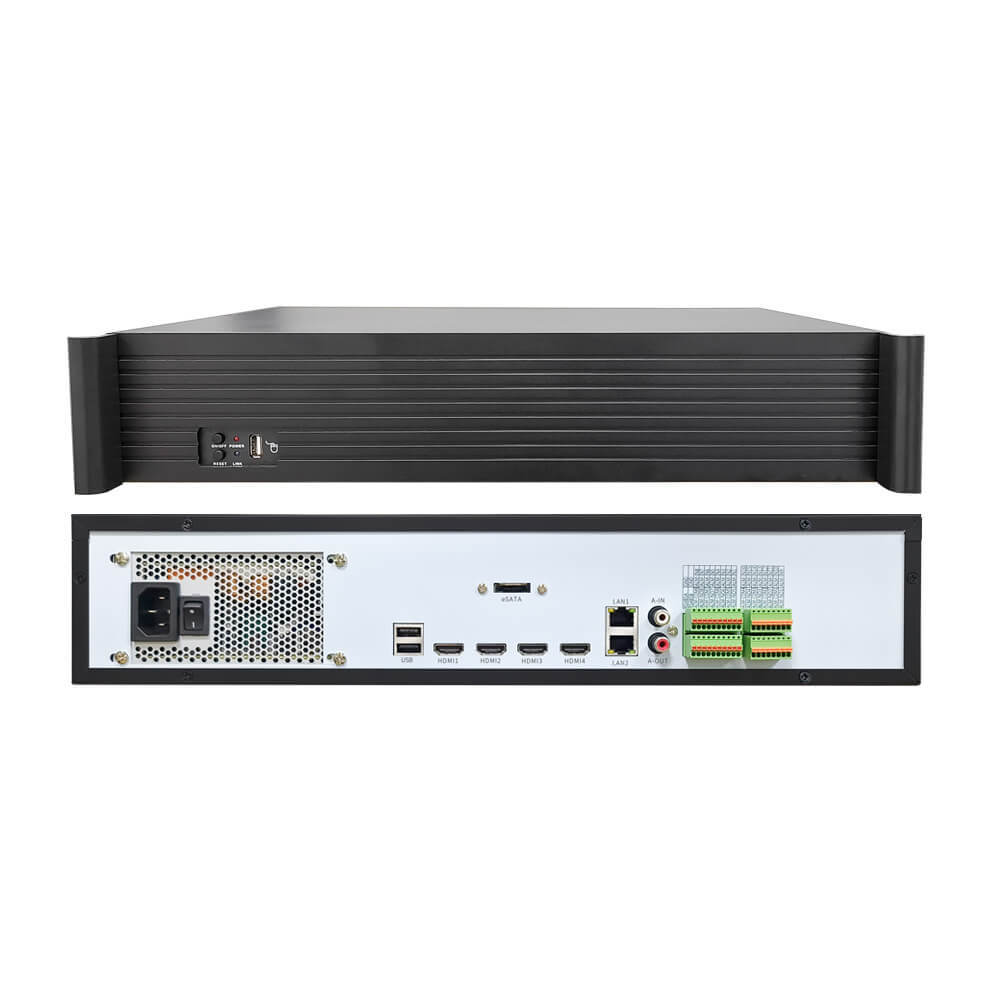

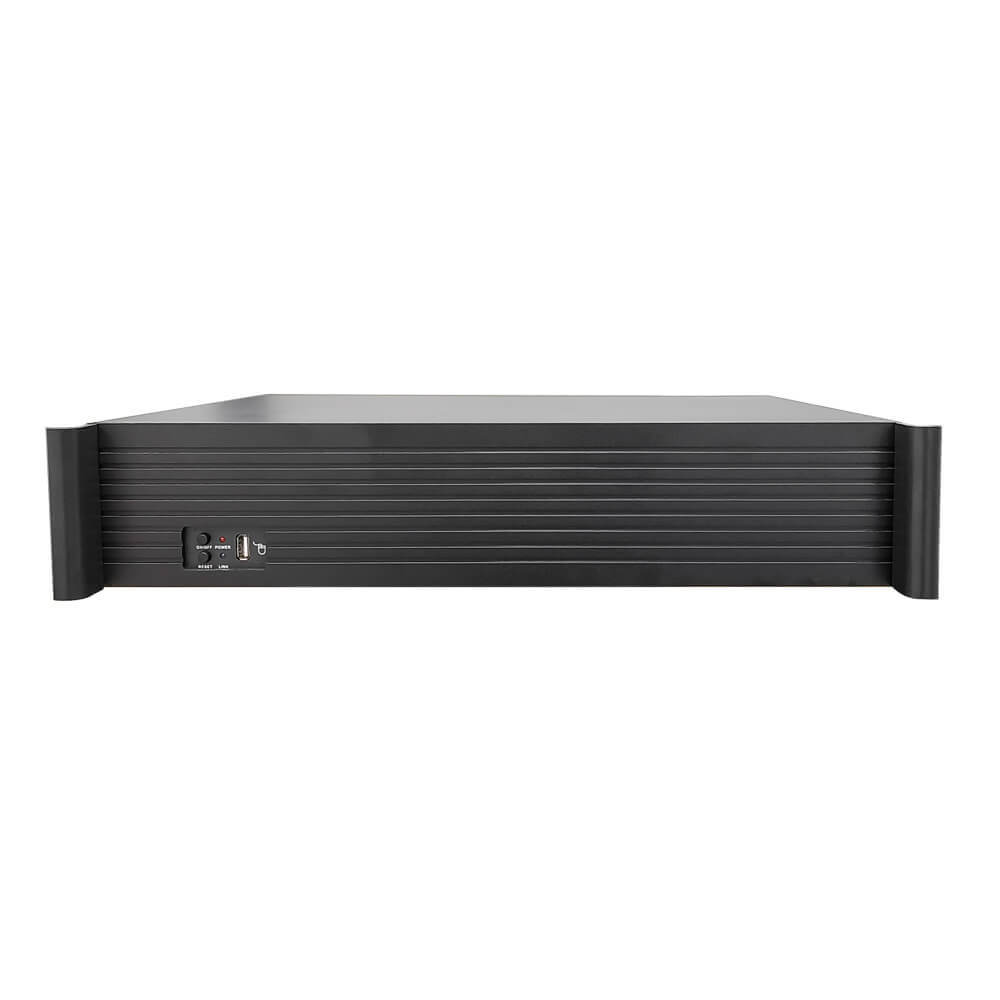

128ch 64ch 36ch 12MP 9HDD Professional Rack Mount Smart NVR
Up to 128ch 12Mp IP camera input
1ch@12MP/4ch@8MP/16ch@1080P/64ch@D1 decoding capacity
800Mbps/380Mbps incoming bandwidth
HDMI (different source)interfaces, 12MP or quad 4K video outputs
9 SATA interfaces, up to 16TB capacity for each disk, 1 eSATA interface
1/4/6/8/9/16/25/36/64 screen preview
Support audio I/O
Support Alarm I/O
AI function, smart recording & playback
| Model NO. | NVR90128-9H | NVR9064-9H | NVR9036-9H |
| System | |||
| Protocol | RTSP, SLINK(private protocol), ONVIF, I9 | ||
| Main Processor | RK3588 | RK3568 | RK3568 |
| Operating System | Embedded Linux | ||
| Bandwidth | 800M | 380M | 380M |
| Video Resolution | 12Mp/8Mp/5Mp/3Mp/720P/D1 | ||
| Smart Function | Support area intrusion detection, loitering detection, line-crossing, vehicle illegal parking, absent detection, retrograde detection, human and vehicle detection(work with our IP camera) | ||
| Recording & Playback | |||
| Record Mode | Manual, schedule, motion detection, timing, smart record(record when alarm such as area intrusion detection and so on to save HDD) | ||
| Playback | 1ch 12Mp, 4ch 4K, 16ch D1 | ||
| Playback Mode | Regular playback, smart/event playback(playback the footage which include alarm) | ||
| Video & Audio | |||
| Video Compression | H265+/H.265/H.264 | ||
| Video Input | 128ch(4000x3000, 3840x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720) | 64ch(4000x3000, 3840x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720) | 36ch(4000x3000, 3840x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Display Mode |
Mode 1: 1PC HDMI output 12Mp/D1 + 128ch preview+16ch playback Mode 2: 2PCS HDMI output 12Mp/D1 + 2 screens 64ch + 64ch preview + 16ch playback Model 3: 4PCS HDMI output 8Mp/D1 + 4 screens 36ch + 36ch + 36ch + 36ch preview + 16ch playback |
Mode: HDMI or VGA output8Mp/D1 + 64ch preview + 16ch playback | Mode: HDMI or VGA output 8Mp/D1 + 36ch preview + 16ch playback |
| Split & Decoding |
1 screen mode:1chx8K, 2chx12Mp, 4chx12Mp, 6ch(1chx12Mp + 5chx2Mp), 8ch(1chx12Mp + 7chx2Mp), 9chx8Mp, 10ch(2chx8Mp + 8chx3Mp), 16chx5Mp, 25chx3Mp, 36chxD1, 49chxD1, 64chxD1, 128chxD1 2 screen mode:1chx8K, 2chx12Mp, 4chx8Mp, 6ch(1chx12Mp+5chx2Mp), 8ch(1chx12Mp+7chx2Mp), 9x3Mp, 10ch(2chx8Mp+ 8chx2Mp), 16chx2Mp, 25chxD1, 36chxD1, 49chxD1, 64chxD1, 81chxD1, 100chxD1 4 screen mode:1chx12Mp, 2chx8Mp, 4chx5Mp, 6ch(1chx8Mp+5chx2Mp), 8ch(1chx5Mp+7chx2Mp), 9chx2Mp, 10chx2Mp,16chxD1, 25chxD1, 36chxD1, 49chxD1 |
1 screen mode:1chx8K, 2chx8Mp, 4chx8Mp, 6ch(1chx8Mp+ 5chx2Mp), 8ch(1chx8Mp + 7chx2Mp), 9chx2Mp, 10chx2Mp, 16chx2Mp, 25chxD1, 36chxD1, 64chxD1 | 1 screen mode:1chx8K, 2chx8Mp, 4chx8Mp, 6ch(1chx8Mp+ 5chx2Mp), 8ch(1chx12Mp+ 7chx2Mp), 9chx2Mp, 10chx2Mp, 16chx2Mp, 25chxD1, 36chxD1 |
| Video output | HDMI x 4 | HDMIx1, VGAx1 | HDMIx1, VGAx1 |
| Audio Compression | G.711A/U | ||
| Audio I/O | RCA port | ||
| Storage & backup | |||
| Storage | HDD, IPSAN, NAS | ||
| HDD | 9 SATA interfaces (3.5" SATA), up to 16TB capacity for each disk | ||
| Backup method | USB portable HDD, U disk, network | ||
| Network | |||
| Interface | 2xRJ45 10M/100M/1000M Adaptive Ethernet Interface | ||
| Network protocol | DDNS, EMAIL, UPNP, NTP, DHCP, IP Filter, PPPoE, P2P | ||
| CMS Software | Windows 7/ Windows 8/Windows 10/MAC OS | ||
| App | SeeEsay App, support iOS & Android | ||
| External Port | |||
| Network Port | 2xRJ45 10/100/1000M adaptive Ethernet interface | ||
| Audio Input | RCA portx1 | ||
| Audio Output | RCA portx1 | ||
| USB | USB port 2.0x3 | ||
| E-SATA | 1 | ||
| RS-485 | 1 | ||
| RS232 | / | ||
| Alarm Input | 16ch | 8ch | 8ch |
| Alarm Output | 8ch | 4ch | 4ch |
| HDMI | 4Pcs | 1 | 1 |
| VGA | / | 1 | 1 |
| General | |||
| Power Supply | ATX 110-240V/50-60Hz | ||
| Power Consumption | ≤250W(without HDD) | ||
| Working Environment | -10~55℃/10~90% | ||
| Dimension | 2U chassis,440(w)x430(D)x90(H)mm | ||
| Weight(kg) | 8.5KG(without HDD) | ||
| Package | 1PCS/carton, 57x56x26CM, 10KG(without HDD) | ||
